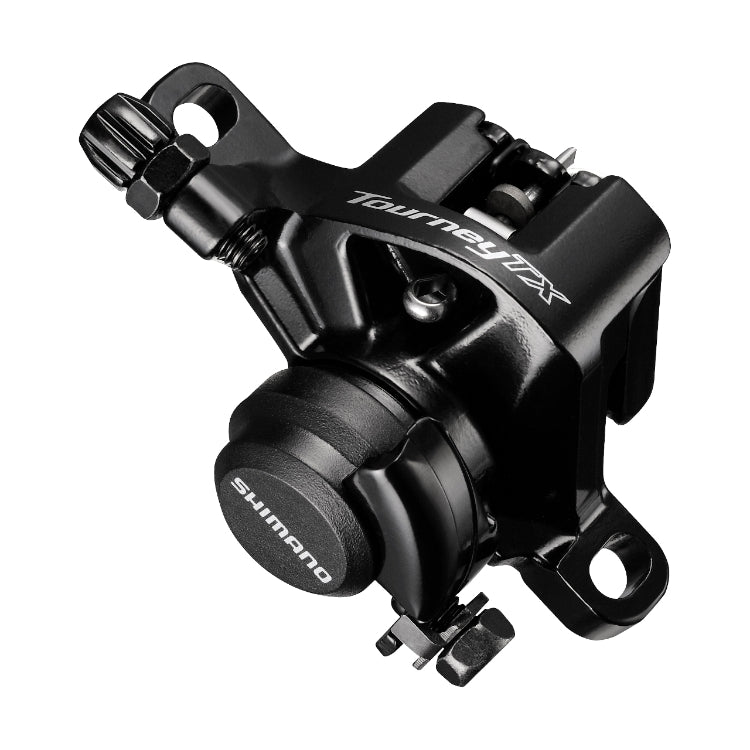

BR-TX805
SHIMANO TOURNEY TX - Mechanical Disc Brake Caliper - MTB
Package contains one disc brake caliper with brake pads
Does not include brake levers
The caliper can be used for either Front or Rear post-mount
The SHIMANO TOURNEY TX mechanical disc brake offers reliable brake performance with smooth, light action.
Wider pad clearance (+20% vs. BR-M416-A) for less opportunity of pad rubbing noise
Quick assembly
Clean cable routing in combination with both chain stay and seat stay mount
More affordable mechanical disc brake with CENTER LOCK system
Designed for resin pad only
160mm/180mm rotor size available
PRODUCT SPECIFICATIONS
MODEL NO: BR-TX805.
SERIES: TOURNEY TX800 Series
Color: Black
Brake type: Mechanical disc brake
Caliper fixing bolt Anti loosen method: Snap ring
Caliper fixing bolt Tool size: 5mm

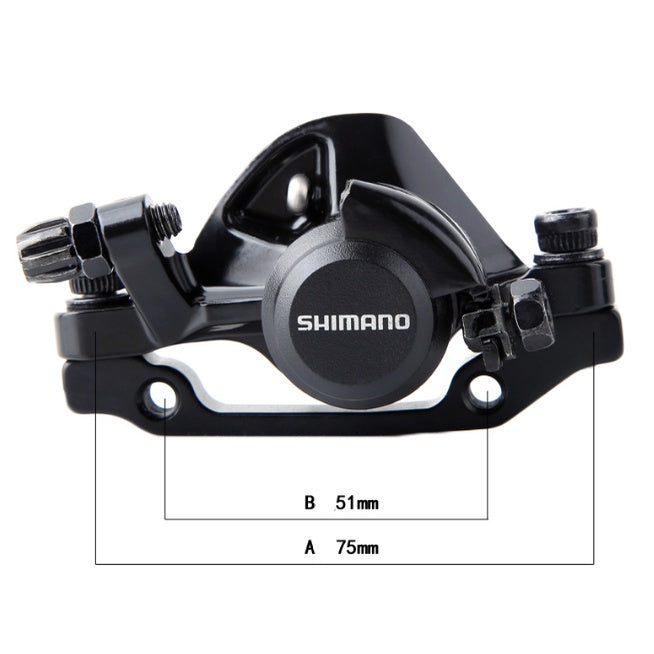

Mount type: Post-type
Pad Standard: B01S Resin
Pad mount: Split pin
Piston: 1
Recommended brake lever: V-BRAKE BL (1.5-2.5 finger)
Recommended disc brake rotor: SM-RT10, SM-RT26
Pad Standard 1: B03S Resin
