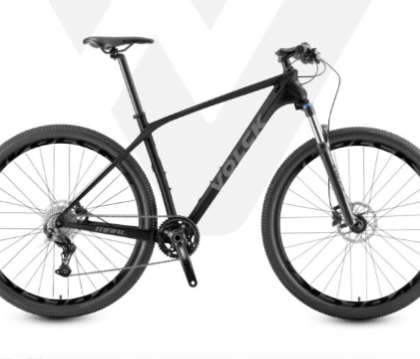

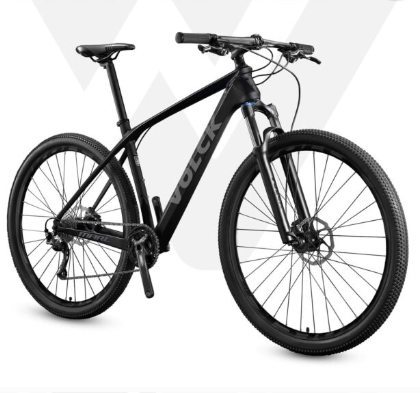

MTB 29" VOLCK Marl 6 Carbon Frame SHIMANO Deore 12 Speed

Colour

Dark Grey

Carbon Fiber

Frame, Handlebar, and Seat Post

Weight (kg)

12.4

Suitable Height (inch)

62 -74 [160 - 190 cm]

Product Size

24.5/29" * 15" (S) / 17"(M) / 19"(L)

Frame-Body Carrying System

Frame

15/17/19" Carbon Frame Pressfit BB, Built-in cables

Suspension Fork

SYH 27.5/29" Air Alloy Hydraulic Lockout Travel 100L M15*110

Handlebar

Carbon 31.8 * 680mm

Stem

Alloy SM-A102-8, 31.8 * 28.6 * 90 ± 7º, Sandblast Black

Grip

PO-GRIP-06 Straight Fibre Leather Hand-Sewn Grip

Saddle

Black

Seat Post

Carbon 31.6 * 350 mm, Sandblast Black

Headset

H373M/2861 1-1/8 28.6 * 41.8-52 * 39.8 Black

Derailleur / Brake System

Left Shifter

SHIMANO DEORE SL-M6100, R/R: 12 Speed Rapidfire Plus 2400mm Inner

Rear Derailleur

SHIMANO DEORE RD-M6100, Top Normal, Shadow Plus Design, SGS 12 Speed

Left Brake Lever

SHIMANO ALTUS MT200, Rear Brake, 1450 mm

Right Brake Lever

SHIMANO ALTUS MT200, Front Brake, 750 mm

Disk Brake

Stainless Steel P0300 ¢160 SUS 410

Transmission System

Cassette Sprocket

SUNSHINE HR12-50A 12S 11-50T Black

Crankset

SHIMANO DEORE M6100 FC-MT510-1 12 Speed, 2-PCS FC, 170mm, 34T W/O CG, W/O 52mm (Size 17/19) PROWHEEL MPX-CR094S-TT, 170mm, 34T (Size 15)

Bottom Bracket

SHIMANO DEORE M6100 BB-MT500-PA

Chain

SHIMANO DEORE CN-M6100 118L HG 12-SPEED, W/QUICK-LINK

Pedal

Alloy, LP-B829 9/16 Black, DU

Wheelset System

Rim

Alloy 27.5/29 * 32H * 14G, W/O Rivet, Anodized Black

Front Hub

Two bearings 14G * 32H * M15 * 110 W/O LOGO

Rear Hub

14G * 32H * M12 * 148 Black W/O LOGO

Tire

Continental Race King 27.5/29 * 2.0” 60TPI
